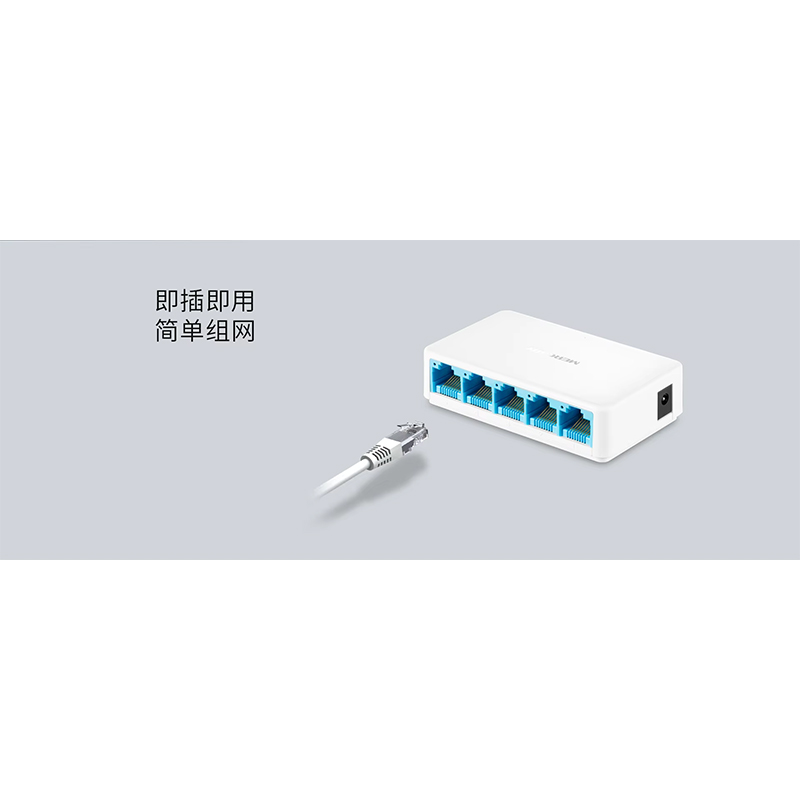

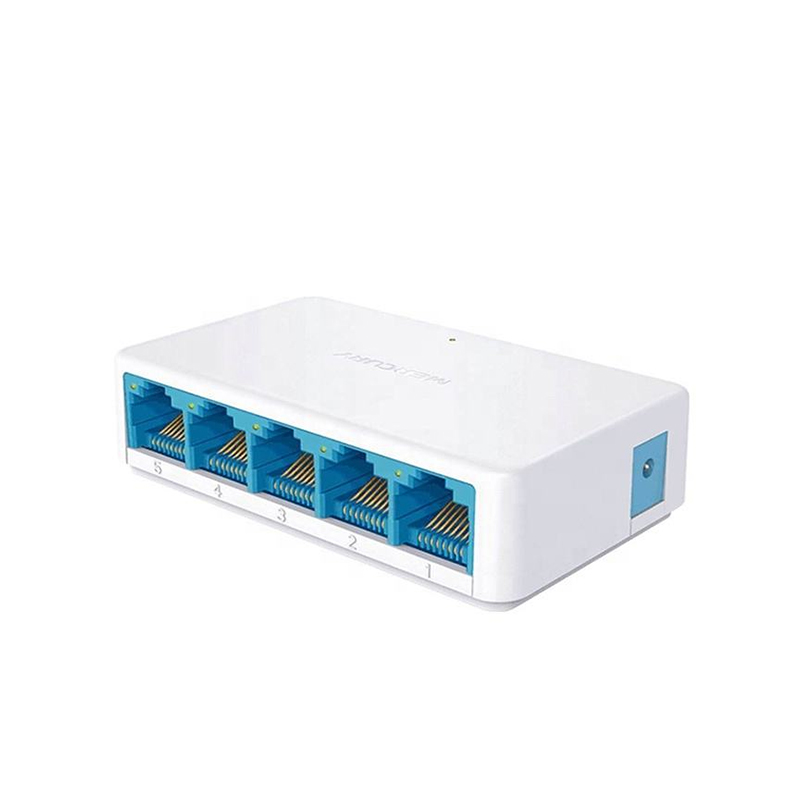

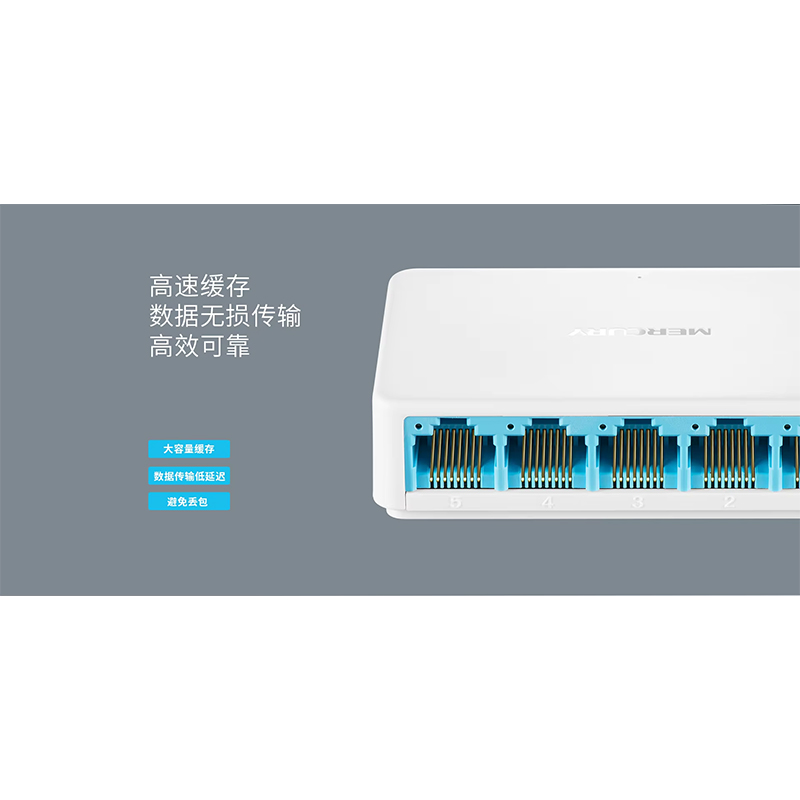

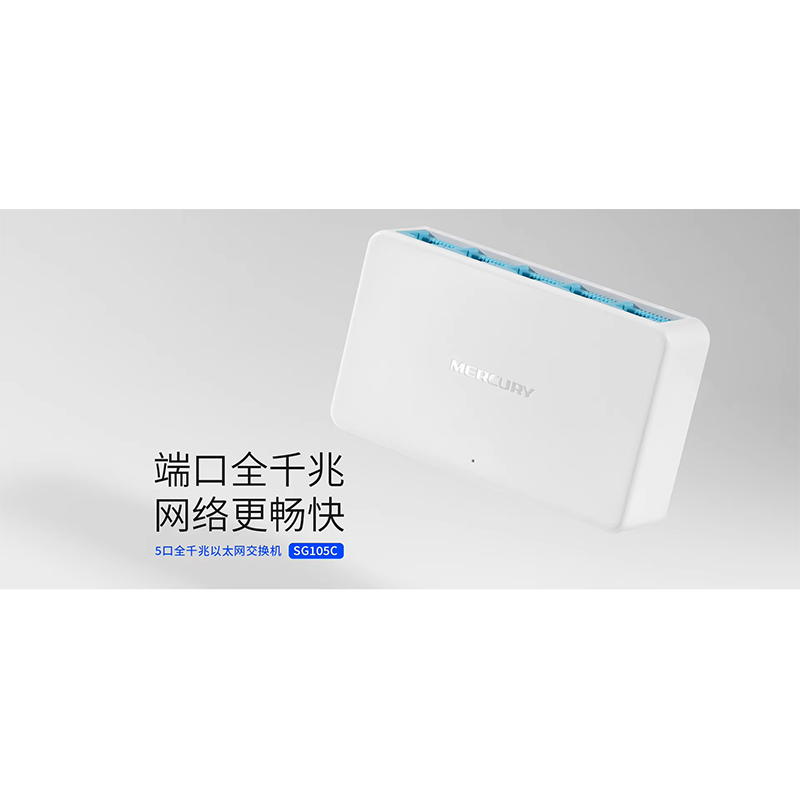

5-port Gigabit switch SG105C

>5 Gigabit RJ45 ports
>MAC address self-learning
>Desktop plastic case design
>Mini size design

Product description

>Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
>Flow control mode: full duplex adopts IEEE 802.3x standard, half duplex adopts Backpressure standard
>store-forward architecture
>5 10/100/1000M automatic Adapt to RJ45 port, support port auto flip (Auto MDI/MDIX)
>5 ports all support 10M full/half duplex, 100M full/half duplex, 1000M full duplex
>UTP port supports auto-negotiation function and automatically adjusts the transmission mode And transmission rate
>Support MAC address self-learning
>Dynamic LED indicator, providing simple working status prompts and troubleshooting
>External power supply, desktop plastic case structure design
>Mini size design, can be easily put into the information box

Parameter specifications

>Network standards IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
>Protocol CSMA/CD
>Port 5 10/100/1000M adaptive network ports
>Support network cable type 10Base-T: Type 3 or 3 Class 5 UTP 100Base-TX: Class 5 UTP 1000Base-T: Class 5 or higher UTP
>Indicator power, status indicator
>Dimensions (L x W x H) 82mm x 49mm x 21mm
> Exchange storage and forwarding and-Forward), wire-speed filtering and forwarding
> power supply external power adapter
> filtering and forwarding rate 10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
> use environment working temperature: 0℃ to 40℃ storage temperature: -40℃ to 70℃ Working humidity: 10% to 90% RH non-condensing Storage humidity: 5% to 90% RH non-condensing
